VXLAN: Bridging L2 Networks closer

This post is about a tunnel technology used by routers called VXLAN.







----------------------------------------------------------------------------------------------------------- Referred links:

https://networkdirection.net/articles/routingandswitching/vxlanoverview/

https://medium.com/@NTTICT/vxlan-explained-930cc825a51

http://www.virtualizationteam.com/network/vxlan-concept-simplified.html

https://sites.google.com/site/amitsciscozone/home/data-center/vxlan

https://tools.ietf.org/html/rfc7365:

Framework for Data Center (DC) Network Virtualization

 https://networkengineering.stackexchange.com/questions/46151/vxlan-vs-vlan-over-layer-3



--------------------------------------------------------------------------------------------------------------


VXLAN is a formal internet standard, specified in RFC 7348. If we go back to the OSI model, VXLAN is another application layer-protocol based on UDP that runs on port 4789.

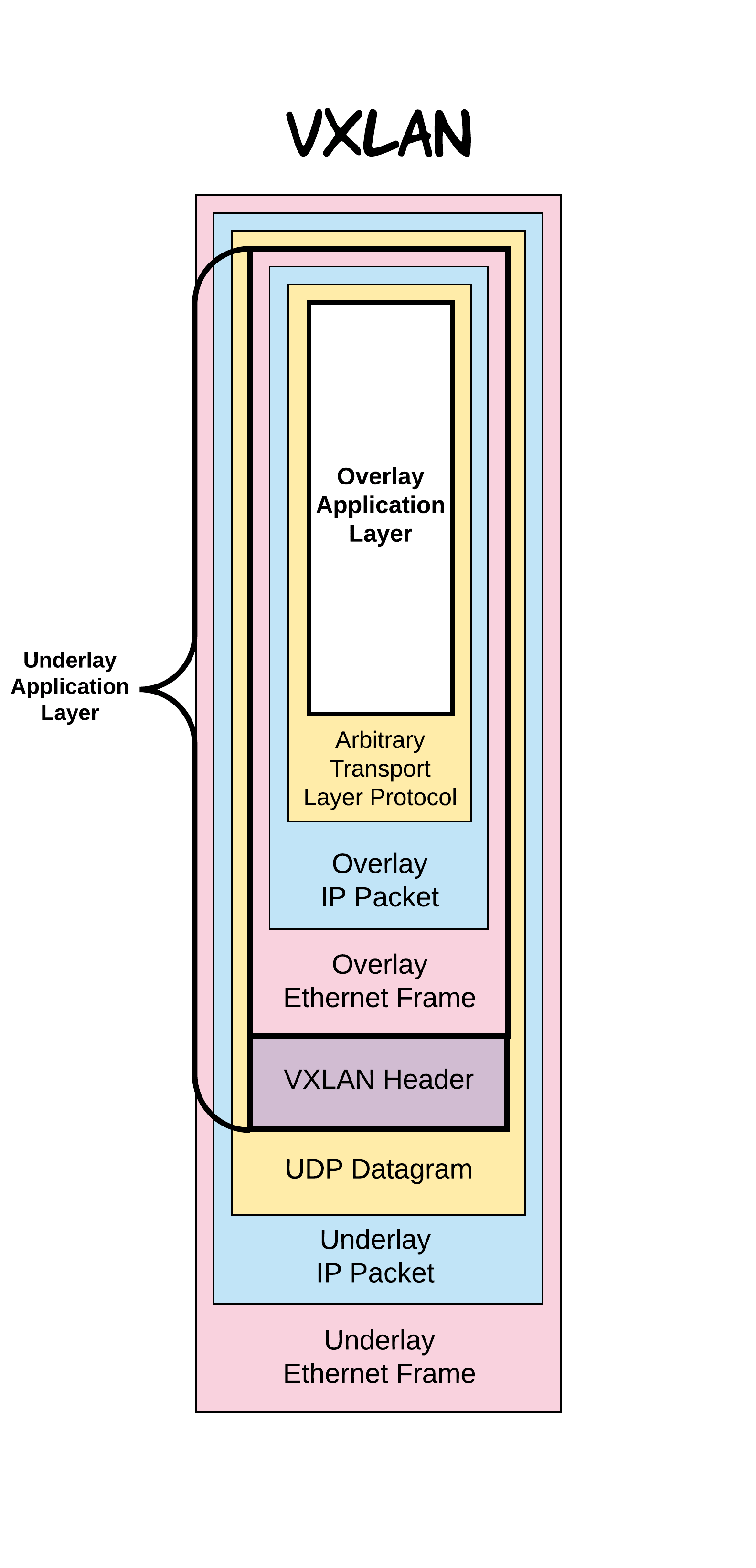

At its most basic level, VXLAN is a tunnelling protocol. In the case of VXLAN specifically, the tunnelled protocol is Ethernet. In other words, it’s merely another Ethernet frame put into a UDP packet, with a few extra bytes serving as a header — or a transport mechanism that supports the software controlling the devices that use the VXLAN.

Virtual Extensible LAN (VXLAN) is an encapsulation protocol for running an overlay network on existing Layer 3 infrastructure.

An overlay network is a virtual network that is built on top of existing network Layer 2 and Layer 3 technologies to support elastic compute architectures.

VXLAN makes it easier for network engineers to scale out a cloud computing environment while logically isolating cloud apps and tenants.

 From the packet switching point-of-view, VXLAN is just a matter of sticking some encapsulation on top of an L2 frame: something that other protocols do as well. The real difference it makes is at the control and management layer.





Need to mention is its available hardware support. While VxLAN can run well in software, some platforms implement VxLAN in hardware.

However, it does require multicast-enabled IP network and adjustment of MTU size on physical devices.

Ideally, one logical Layer 2 network is associated with one multicast group address. Sixteen million logical Layer 2 networks can be identified in VXLAN, using 24 bit field in the encapsulation header, but the multicast group addresses are limited (224.0.0.0 to 239.255.255.255). In some scenarios it might not be possible to have one to one mapping of a logical Layer 2 network to multicast group address. In such scenarios the vCloud Networking and Security Manager maps multiple logical networks to a multicast group address

 Also, the lack of control-plane in some setups means MAC address learning is done dynamically which could cause scalability problems.

Benefits of VXLAN over pure L2

1.

Probably the greatest advantage a VXLAN solution has over a pure Layer 2 (L2) network is the elimination of the risks associated with L2 domains spanning multiple logical switches. For instance, an entirely L3 network with a VXLAN overlay is not susceptible to the spanning tree faults that have been experienced by some major Australian organizations.
Using STP to provide L2 loop free topology disables most redundant links. Hence, Equal-Cost Multi-Path (ECMP) is hard to achieve. However, ECMP is easy to achieve in IP network.

2.

Additionally, VXLAN is more scalable than pure L2, especially when control-plane learning is implemented, because excessive BUM (broadcast, unknown uni-cast and multicast) frame flooding is suppressed. This, combined with the fact that hardware VTEPs (explained below) minimize the latency overhead of VXLAN implementations, means we can build a network that is more scalable and robust, without sacrificing performance.

3.
Due to Server virtualization, each Virtual Machine (VM) requires a unique MAC address and an IP address. So, there are thousands of MAC table entries on upstream switches. This places much larger demand on table capacity of the switches.

4.

VLANs are too restrictive in terms of distance and deployment. VTP can be used to deploy VLANs across the L2 switches but most people prefer to disable VTP due to its destructive nature.

5.

One historical concern with VLANs is the limited address space. Each device can have around 4000 usable VLANs. This is an issue with service providers. They may have to maintain several VLANs per customer, which exhausts the address space quickly. To work around this VLAN ID’s can be reused on different switches, or technologies like Q-in-Q can be used.

VxLAN does not have this limitation. It uses a 24-bit header, which gives us about 16 million VNI’s to use. A VNI is the identifier for the LAN segment, similar to a VLAN ID. With an address space this large, an ID can be assigned to a customer, and it can remain unique across the entire network.

Overlay or underlay?

Overlay and underlay are terms frequently used in SDN and network virtualization. In terms of VXLAN, the underlay is the Layer 3 (L3) IP network that routes VXLAN packets as normal IP traffic. The overlay refers to the virtual Ethernet segment created by this forwarding.

Today is the time of cloud computing and extensive usage of data centers, where VXLAN is playing an important role for some companies, not to forget it has competitors too:)

For example, a L3 VXLAN switch (e.g. Cumulus), upon receiving a frame, may do any of the following:

· switch it locally if it is destined for a locally learnt MAC address (traditional Ethernet switching)

· forward it through a local VTEP, hence pushing it into the underlay encapsulated in VXLAN (in the overlay)

· route it at L3, pushing it into the underlay unencapsulated, which is just another IP packet.



Interaction between Overlays and Underlays

Introducing VTEP

The term VTEP (VXLAN Tunnel Endpoint) generally refers to any device that originates or terminates VXLAN traffic.
The encapsulation and decapsulation are handled by a component called a VTEP (VxLAN Tunnel End Point).  In the Cisco Nexus platform, this is also called an NVE interface.

There are two major types, based on how the encapsulation or de-encapsulation of VXLAN packets is handled: hardware VTEP devices handle VXLAN packets in hardware, while software VTEP devices handle VXLAN packets in software.

Examples of hardware VTEPs include switches and routers such as Cumulus switches, as we use in NTT’s environment. Software VTEPs include servers and hypervisors such as NSX-enabled ESXi hosts.

More specifically, a VTEP can refer to a virtual interface similar to an SVI that exists on such a device. Such an interface will often connect to the local device’s internal bridge implementation and act as the local source of VXLAN frames and the destination for remote MACs.

 As we have seen, VxLAN traffic is encapsulated before it is sent over the network. This creates stateless tunnels across the network, from the source switch to the destination switch.

As shown in the diagram below, a VTEP has an IP address in the underlay network. It also has one or more VNI’s associated with it. When frames from one of these VNI’s arrives at the Ingress VTEP, the VTEP encapsulates it with UDP and IP headers.

The encapsulated packet is sent over the IP network to the Egress VTEP. When it arrives, the VTEP removes the IP and UDP headers, and delivers the frame as normal.

Packet Walk

Let’s take a moment to see how traffic passes through a simple VxLAN network.

1. A frame arrives on a switch port from a host. This port is a regular untagged (access) port, which assigns a VLAN to the traffic
2. The switch determines that the frame needs to be forwarded to another location. The remote switch is connected by an IP network. It may be close or many hops away
3. The VLAN is associated with a VNI, so a VxLAN header is applied. The VTEP encapsulates the traffic in UDP and IP headers. UDP port 4789 is used as the destination port. The traffic is sent over the IP network
4. The remote switch receives the packet and decapsulates it. A regular layer-2 frame with a VLAN ID is left
5. The switch selects an egress port to send the frame out. This is based on normal MAC lookups. The rest of the process is as normal

Tips to remember:

1.
It is important that the underlay is configured and working before the overlay is configured. Problems in the underlay will lead to problems in the overlay.

 2.
 The L2VNI is the bridge domain. This is for bridging hosts on the same layer-2 segment.

An L3VNI can be used to route between L2VNI’s. The ingress or egress VTEP can perform routing. This is called Symmetric IRB. Another form of routing called Asymmetric IRB, uses the ingress VTEP for routing and bridging, while the egress VTEP can only do bridging. Not a lot of vendors support asymmetric IRB.
A VTEP needs to know about all locally used L2VNI’s. It does not need to know about any L2VNI’s that it doesn’t need to support. A VTEP also needs to know about all L3VNI’s in use across the network.


3.

Multitenancy

Each L3VNI can be associated with a VRF. This makes multitenancy possible, in a similar way to MPLS.
Each VRF is still configured with a Route Distinguisher to keep it unique. Reachability information is imported and exported with Route Targets. Remember that you will need extended communities for this.
Each tenant can have one L3VNI, and many L2VNI’s.

 4.
 VxLAN is vendor-independent, so there are different ways it can be deployed. The two primary ways are Host Based and Gateway.

Hosts, such as a hypervisor, can have VxLAN configured on their virtual switches. Other devices, like firewalls and load-balancers, may also speak VxLAN natively.
In cases like this, there is no need to translate VLANs to VNI’s. Furthermore, the VTEPs are on the hosts themselves. The physical network infrastructure sees IP traffic, not VxLAN.

If the hosts do not support running VxLAN natively, or they just don’t use it, the switches can act as a VxLAN Gateway. Hosts belong to a VLAN. The switches map the VLAN to a VNI, and provide the VTEP functions.
In this model, the hosts are unaware of VxLAN, as the switches do all the work.
One advantage of this method is that VxLAN may (depending on platform) be implemented in hardware, providing performance benefits.

Of course, a combination of these two methods can be used. The switches can provide gateway services to some hosts, while other hosts speak VxLAN natively.

5.
VXLAN encapsulation adds between 50 and 54 bytes of additional header
information to the original Ethernet frame.

Because this can result in Ethernet frames  that exceed the default 1514 byte MTU, best practice is to implement jumbo frames  throughout the network,VxLAN adds quite a bit of overhead, so we need to increase the MTU size.
If we don’t do this, we may end up with fragmented packets, which can decrease performance.




6.

When multiple overlays co-exist on top of a common underlay network, resources like bandwidth should be provisioned to ensure that traffic form overlays can be accommodated and QoS objectives can be met.

Overlays can have partially overlapping paths (nodes and links). Each overlay is selfish by nature.it sends traffic so as to optimize its own performance without considering the impact on other overlays, unless the underlay paths are traffic engineered on a per-overlay basis to avoid congestion of underlay resources.

Better visibility between overlays and underlays, or general coordination in placing overlay demands  on an underlay network, may be achieved by providing mechanisms to exchange performance and  liveliness information between the underlay and overlay(s) or by the use of such information by a coordination system.

Such information may include:

- Performance metrics (throughput, delay, loss, jitter)

- Cost metrics

7.

A VXLAN interface can have multiple VNIs, just like a trunk interface can have multiple VLANs. For example:

interface Vxlan 1
  vxlan source-interface loopback 1
  vxlan vlan 100 vni 10100
  vxlan vlan 200 vni 10200
  vxlan vlan 100 flood vtep 2.2.2.2 4.4.4.4
  vxlan vlan 200 flood vtep 2.2.2.2 3.3.3.3 4.4.4.4
